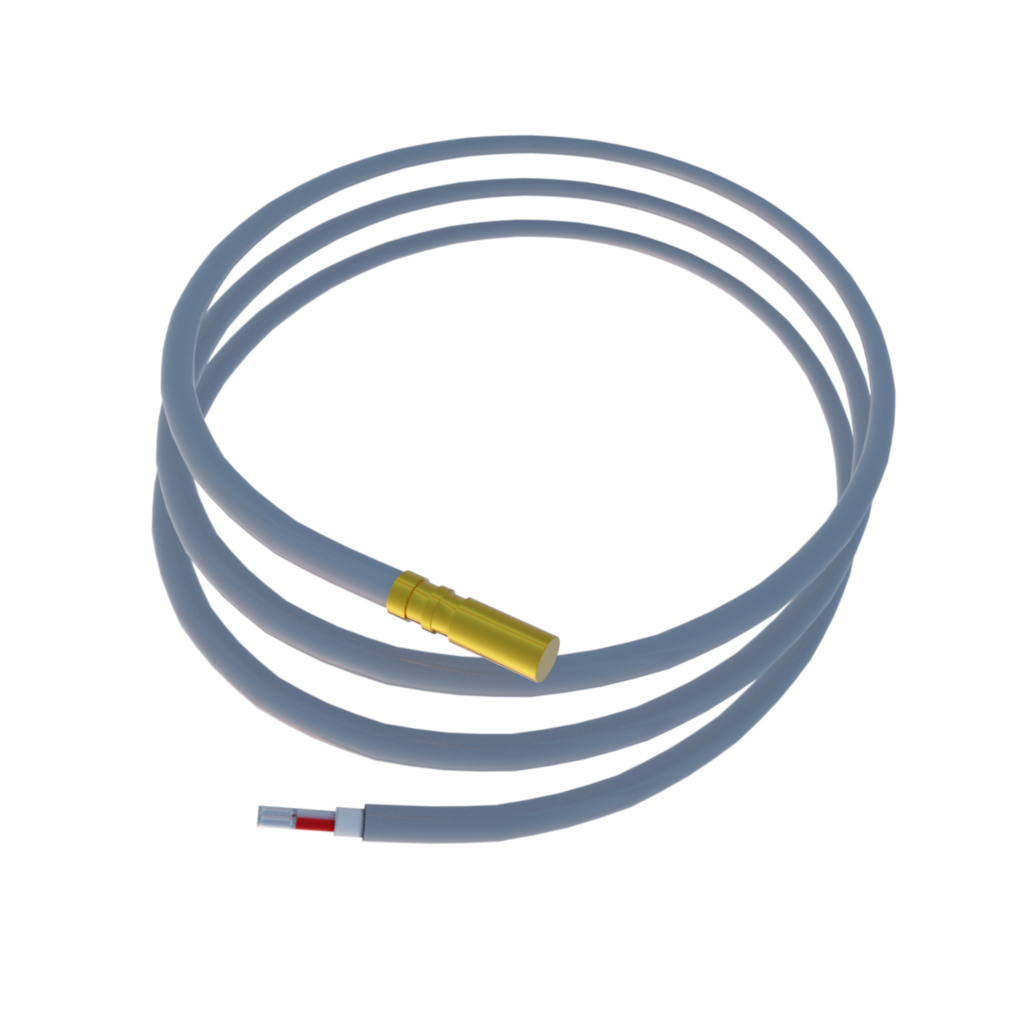

PT1000 PVC CABLE TEMPERATURE SENSOR

The PT1000 PVC Cable Temperature Sensor from PROZEDA GmbH (EURO) is a robust platinum RTD designed for precise temperature measurement in HVAC, solar thermal, and building automation applications. It uses a PT1000 element that delivers a stable, linear resistance signal (1000 Ω at 0°C) per IEC 60751, and a flexible PVC-insulated cable for easy routing and dependable insulation.

Compatible with controllers, regulators, and data loggers that accept PT1000 inputs, it can be installed in immersion sleeves, strapped to pipework with a clamp and thermal paste, or used for air/ambient sensing with suitable accessories. The sensor offers long-term stability, reliable accuracy, and simple two-wire connection for straightforward integration.

• Sensor type: PT1000 platinum RTD (1000 Ω at 0°C)
• Standard: IEC 60751 (α = 0.00385)
• Cable insulation: flexible PVC for easy routing
• Connection: 2-wire; compatible with 3/4‑wire measurement setups if supported by the controller
• Output: resistance signal proportional to temperature
• Typical applications: HVAC, solar thermal systems, boilers, tanks, pipes, building automation
• Installation options: immersion pocket, pipe surface with clamp and thermal paste, or ambient/duct with accessories
• Benefits: stable, accurate, cost-effective, easy to install and maintain
• Compatibility: PT1000-capable controllers and data loggers
