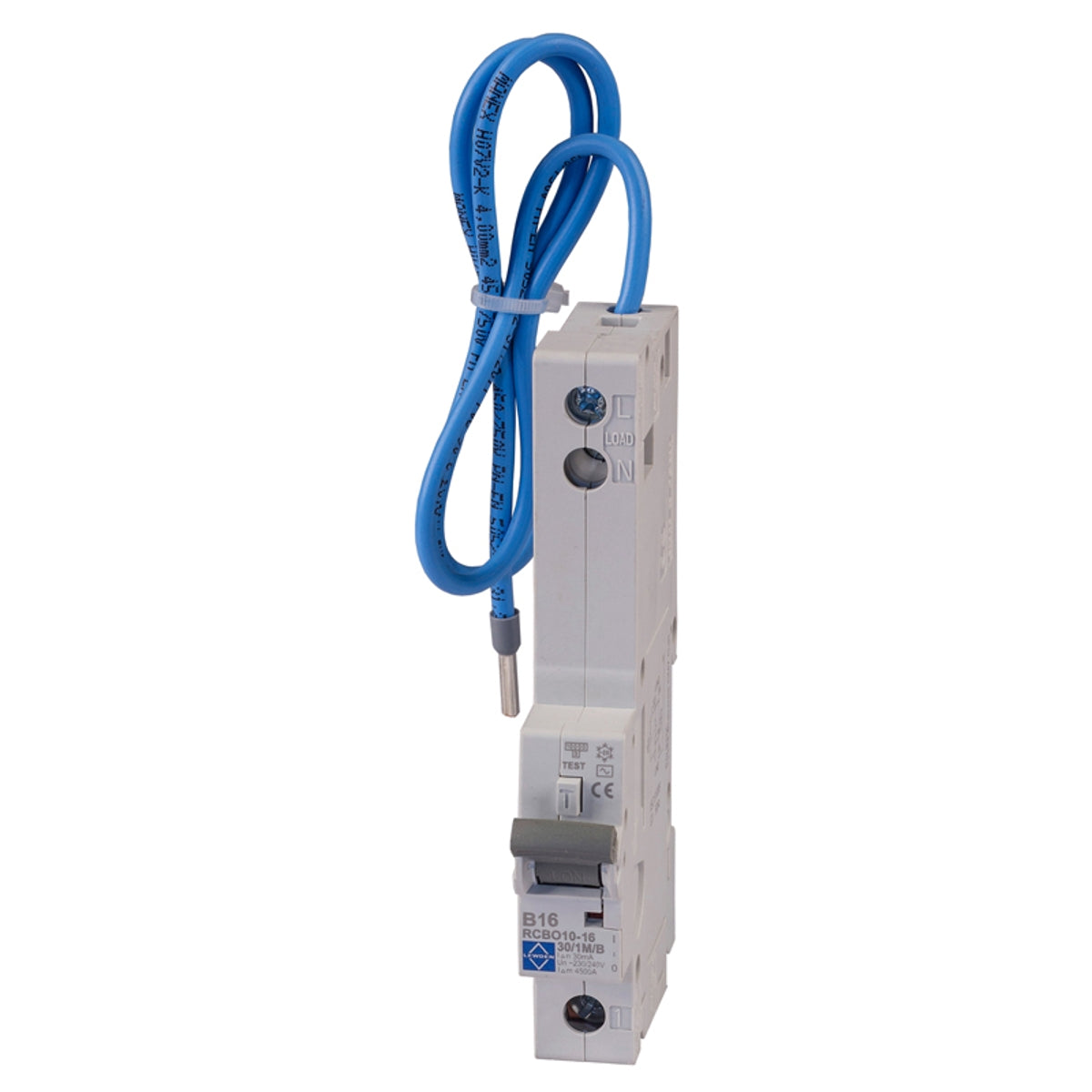

LEWDEN RCBO10-16301MB SP B 16A 30MA 10KA

The LEWDEN RCBO10-16301MB is a compact residual current circuit breaker with overcurrent protection designed to safeguard final circuits against overload, short-circuit, and earth leakage faults. This single-pole device features a B tripping curve for general-purpose circuits and delivers reliable protection with a 16A rating, 30mA residual sensitivity, and 10kA breaking capacity.

Suitable for residential and light commercial installations, it mounts on a DIN rail and includes a test button for routine verification. Built by LEWDEN LTD for use in consumer units and compatible DIN-rail enclosures, it provides a space-saving solution by combining MCB and RCD functions in one device.

• Brand: LEWDEN LTD
• Model: RCBO10-16301MB
• Device type: RCBO (combined MCB + RCD)
• Poles: Single Pole (SP)
• Tripping curve: B
• Rated current: 16A
• Residual operating current (RCD): 30mA
• Breaking capacity: 10kA
• Voltage: 230/240V AC
• Frequency: 50Hz
• Mounting: DIN rail
• Function: Overload, short-circuit, and earth leakage protection
• Application: Residential and light commercial final circuits
• Feature: Integral test button for periodic testing
