KUT 617 1/2FEMALE X 15MM ELBOW

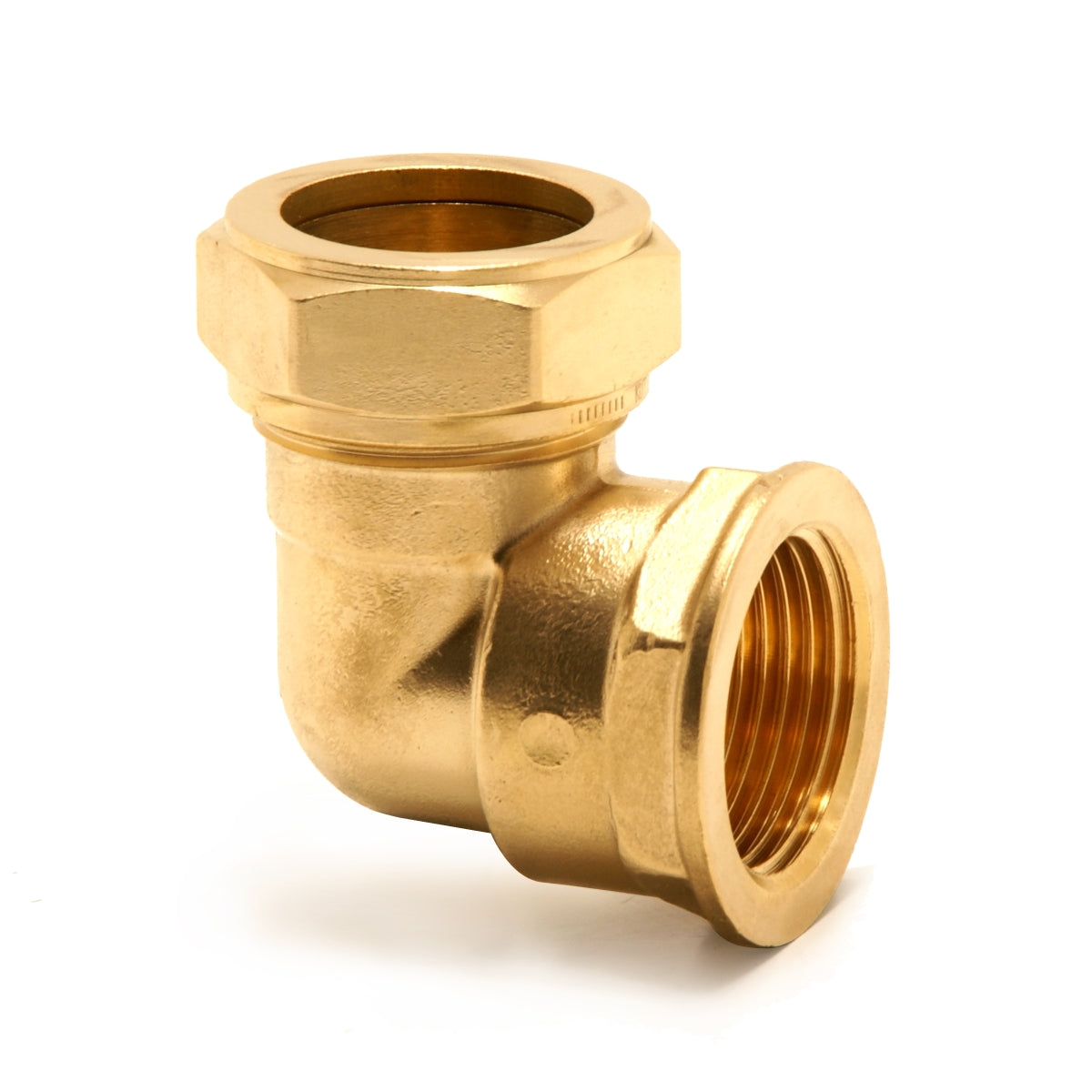

The KUT 617 is a compact 90-degree compression elbow designed for transitioning from 15mm copper or compatible plastic pipe (with appropriate inserts) to a 1/2 inch BSP female threaded connection. Manufactured by Aalberts Integrated Piping Systems Ltd under the Kuterlite range, it provides a reliable mechanical joint without the need for heat or solder.

Constructed from corrosion-resistant brass (DZR), this elbow is suitable for hot and cold water and heating applications in domestic and commercial plumbing systems. It is supplied complete with compression nut and olive for the 15mm end, ready for straightforward installation.

• Model: KUT 617 compression female elbow
• Connections: 15mm compression x 1/2 inch BSP female thread
• Angle: 90 degrees
• Material: DZR brass body with compression nut and olive
• Applications: Hot and cold water, closed-loop heating systems
• Installation: Mechanical joint, no soldering required
• Compatibility: 15mm copper tube (to BS EN 1057) or plastic pipe with suitable inserts
• Brand/Manufacturer: Kuterlite by Aalberts Integrated Piping Systems Ltd
