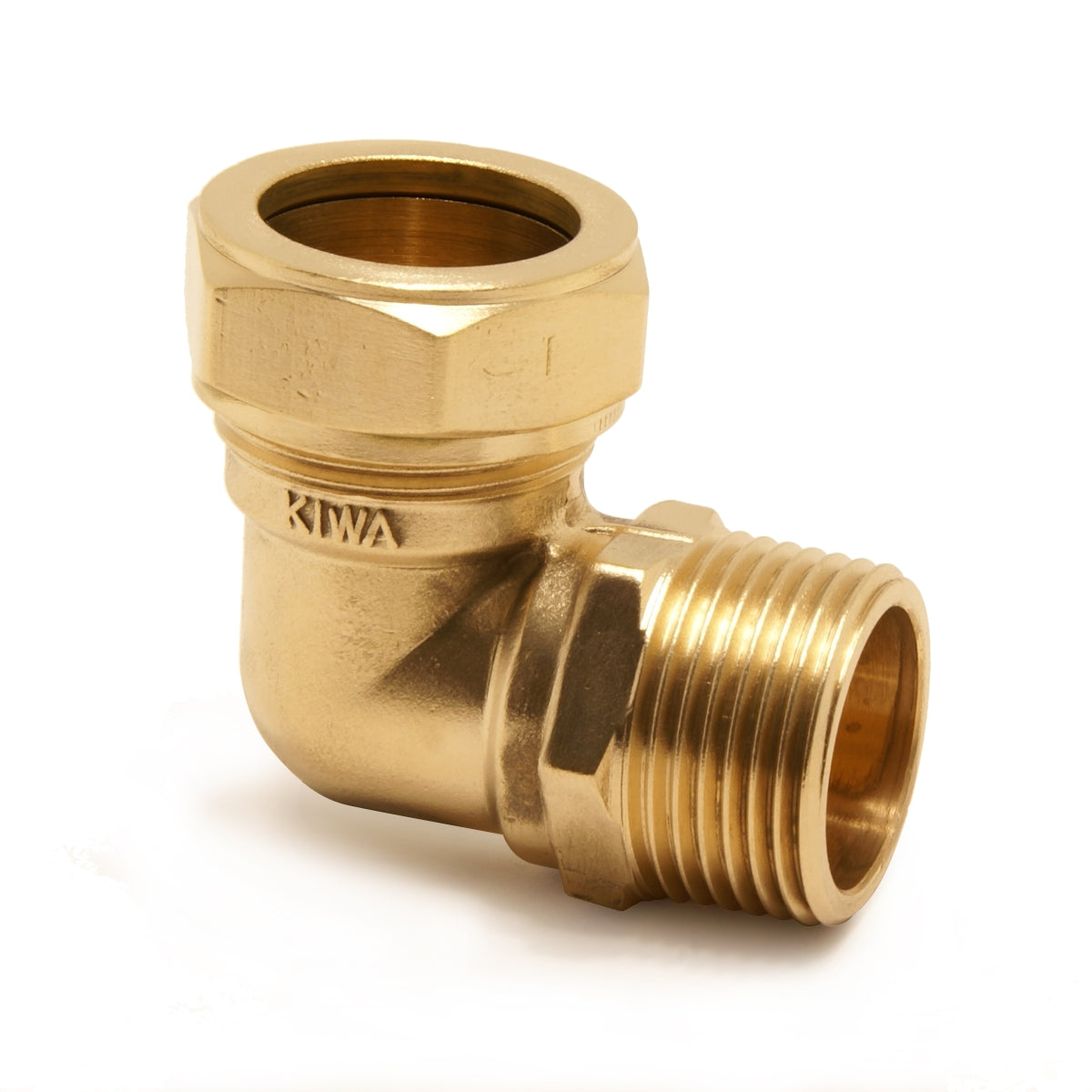

KUT 616 22MMX3/4 MALE ELBOW

The KUT 616 22mm x 3/4" Male Elbow from Aalberts Integrated Piping Systems Ltd is a right-angle fitting designed to connect 22mm pipe to a 3/4" BSP male threaded connection. It provides a compact 90° change of direction where a male thread is required, making it ideal for tight spaces and transitions from pipe to threaded components such as valves, manifolds, and fittings.

This brass compression elbow creates a strong, reliable mechanical joint without the need for heat or solder. It is suitable for general plumbing and heating applications and can be used with 22mm copper tube; it may also be used with compatible plastic barrier pipe when the correct pipe inserts are used. Apply appropriate thread sealant (e.g., PTFE tape) to the male thread as required by the installation.

• Size: 22mm compression x 3/4" BSP male
• Type: 90° male elbow (KUT 616)
• Brand: Aalberts Integrated Piping Systems Ltd
• Material: Brass body with compression nut and olive
• Connection: Compression to male BSP thread
• Use: Plumbing and heating systems; hot and cold water
• Installation: Mechanical joint, no soldering required
• Compatibility: 22mm copper tube; plastic barrier pipe with suitable inserts
• Product reference: KUT 616 (may also be referenced as 441094)
