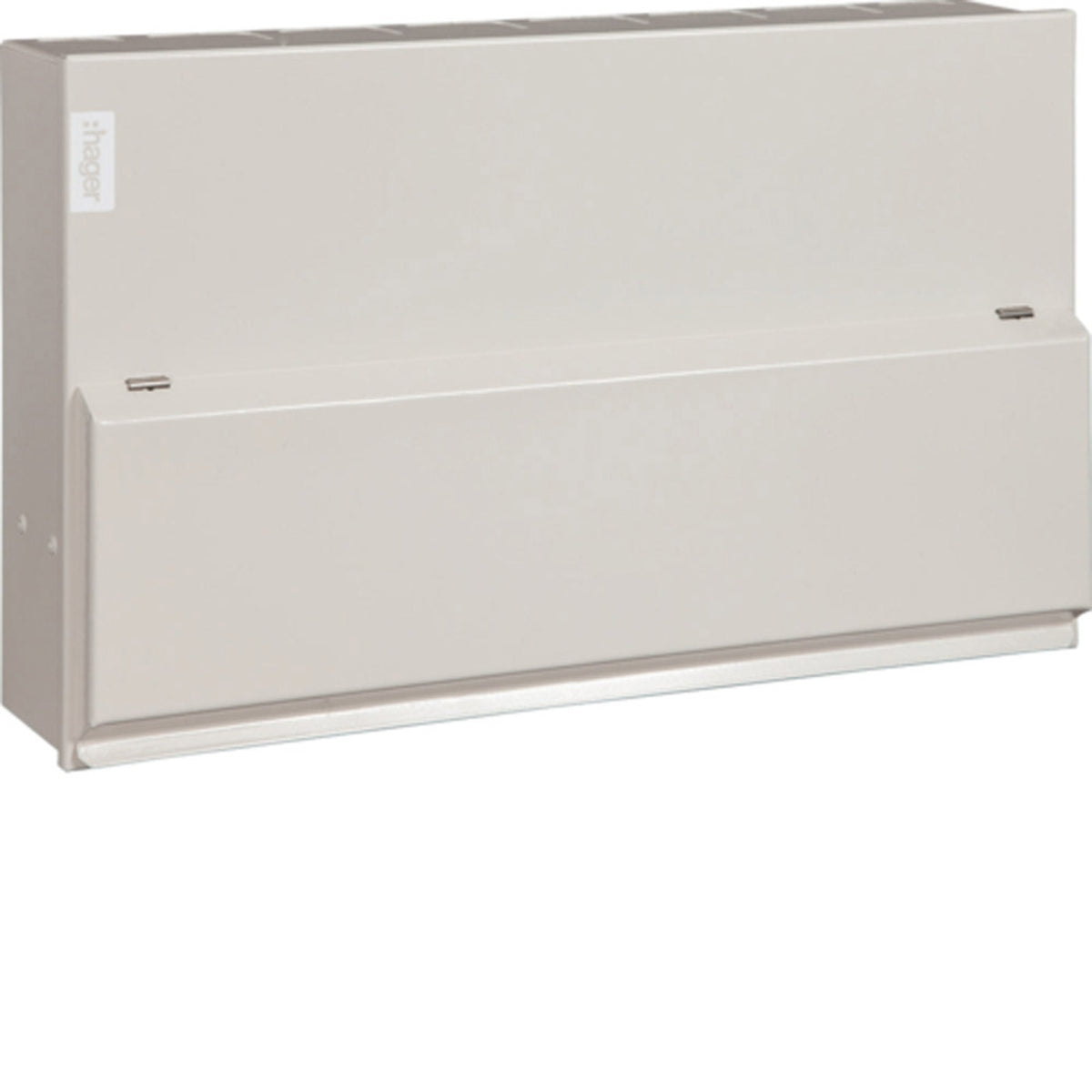

HAGER VML966HRK 18TH EDITION 12 WAY 6 +6

The Hager VML966HRK is an 18th Edition-compliant metal consumer unit designed for modern domestic installations. It provides 12 usable ways arranged in a 6 + 6 split load configuration, offering reliable residual current protection across two banks while maintaining full isolation via the main switch.

This enclosure features a robust steel construction with a white powder-coated finish and is supplied with a 100A double pole main switch, two 30mA RCCBs, and a busbar system. Neutral and earth bars are clearly laid out for straightforward wiring, and multiple cable entry knockouts support tidy, flexible installation. Outgoing MCBs/RCBOs are selected and fitted to suit the final circuit requirements.

• Model: Hager VML966HRK (often referenced as 410448)
• Configuration: 12 ways total (6 + 6 split load)
• Main isolator: 100A double pole
• RCDs: 2 x 30mA RCCB (protecting 6 ways each)
• Enclosure: Non-combustible steel, white powder-coated
• Standards: Compliant with BS EN 61439-3 and 18th Edition (BS 7671)
• Supplied with: Main switch, 2 x RCCB, busbar, neutral and earth bars, blanks, labels, and instructions
• Outgoing protective devices: MCBs/RCBOs not included (select to suit circuits)
• Application: Domestic and light commercial consumer unit installations
