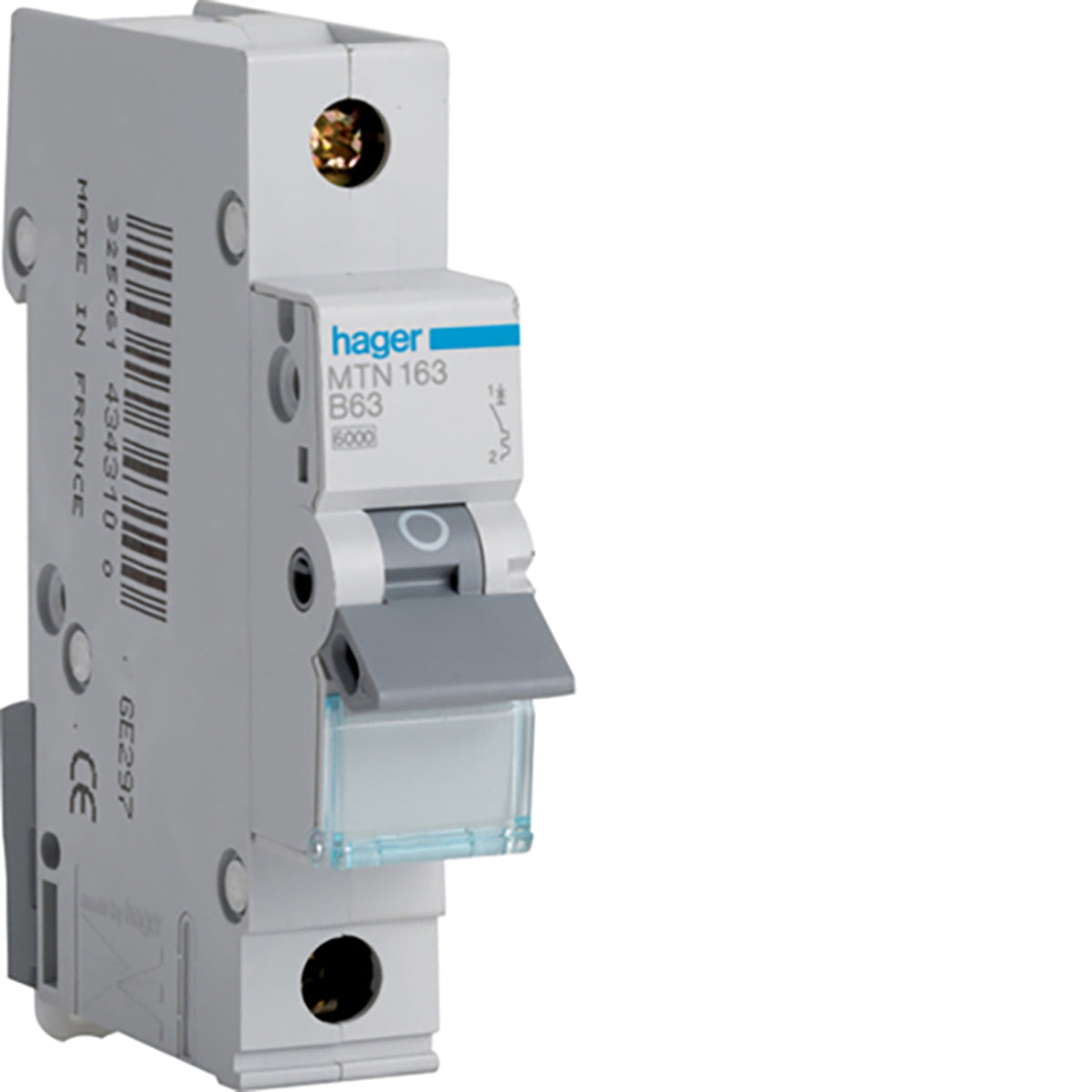

HAGER MTN163 1P 6KA B-63A 1M B TYPE MCB

The Hager MTN163 is a single‑pole miniature circuit breaker designed to protect final circuits against overload and short‑circuit faults. With a Type B tripping characteristic and 6 kA breaking capacity, it is suitable for domestic and light commercial installations. The compact 1‑module width allows easy DIN‑rail mounting in standard distribution boards, delivering reliable and consistent protection.

• Manufacturer: Hager
• Part number: MTN163
• Poles: 1P
• Rated current: 63 A
• Tripping curve: Type B
• Breaking capacity: 6 kA
• Module width: 1M (18 mm)
• Mounting: 35 mm DIN rail
• Voltage rating: 230/400 V AC, 50/60 Hz
• Standard: BS EN 60898‑1
• Application: Overload and short‑circuit protection for final circuits in residential and commercial boards
• Busbar: Compatible with Hager comb busbar systems
