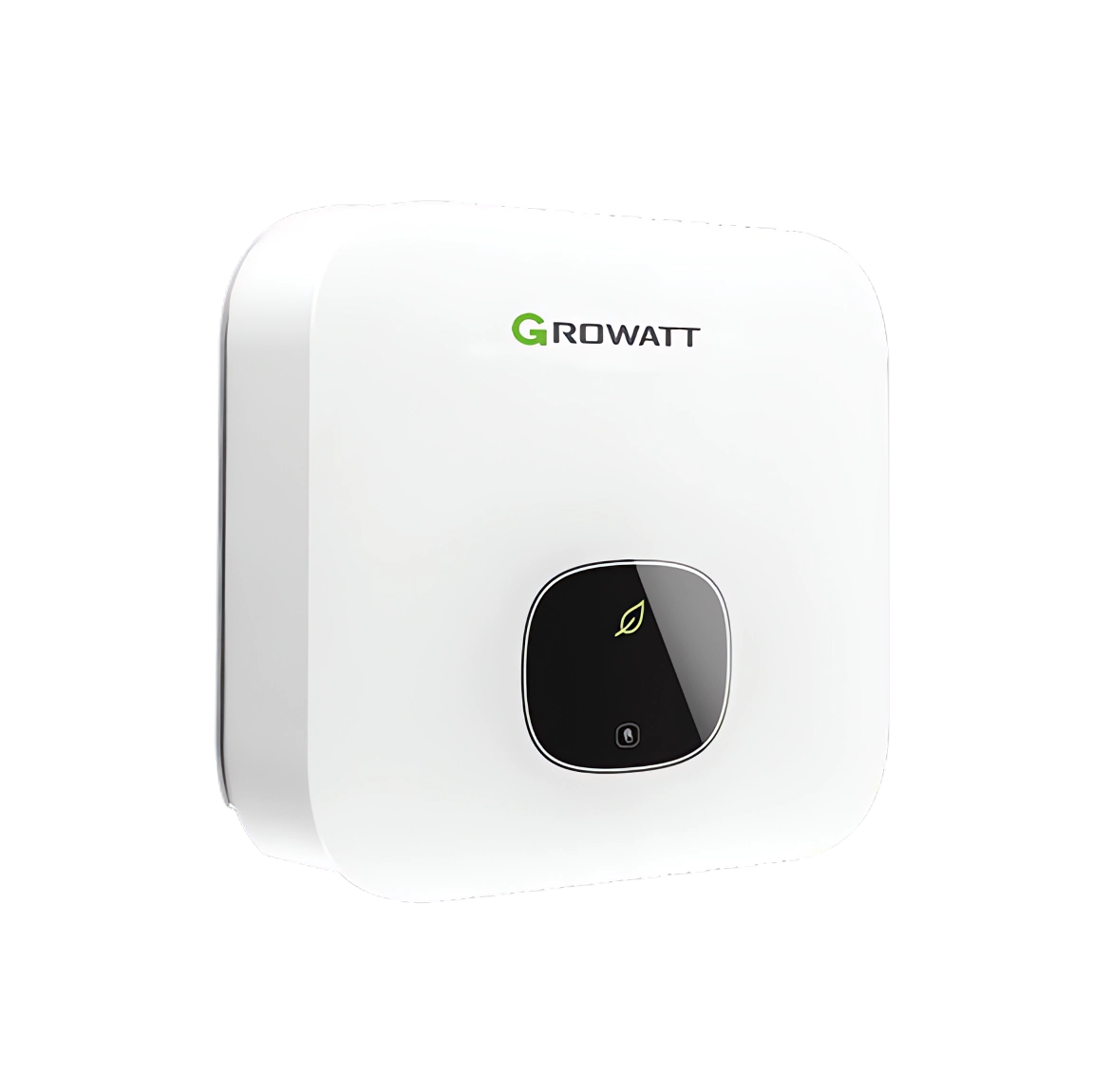

GROWATT MIN 3600 TL-X-DC SOLAR INVERTER

The Growatt MIN 3600 TL-X-DC is a single-phase, grid-tied solar inverter designed for residential PV systems. It features a compact, lightweight design with high conversion efficiency and modern safety protections. The DC-only version is intended for systems that do not require integrated AFCI in certain markets, while still offering reliable performance and remote monitoring via optional communication modules.

• Model: MIN 3600 TL-X-DC
• Manufacturer: Growatt New Energy Technology Co., Ltd.
• Application: Single-phase, grid-tied residential PV systems
• Max DC input voltage: 550 V
• Start-up voltage: 100 V
• MPPT voltage range: typically around 120–550 V (check final design conditions)
• Number of MPPTs / strings per MPPT: 2 MPPTs / 1 string per MPPT
• Rated AC output power: 3.6 kW
• Max efficiency: up to approximately 98% (European efficiency around 97% class)
• AC output: 230 V, 50/60 Hz, single-phase
• Communication options: RS485, WiFi/LAN/ShineLink (via optional dongle/module)
• Display/interface: LED indicators and app-based monitoring
• Safety features: DC reverse polarity protection, DC/AC surge protection, anti-islanding, ground fault protection
• Cooling: Natural convection (fanless) for quiet operation
• Enclosure rating: IP65 for outdoor/indoor installation
• Operating temperature: typically -25°C to +60°C (output may derate at higher temperatures)
• Dimensions and weight: compact and lightweight housing (varies slightly by region specification)
• Compliance: CE and relevant grid standards (varies by country)
