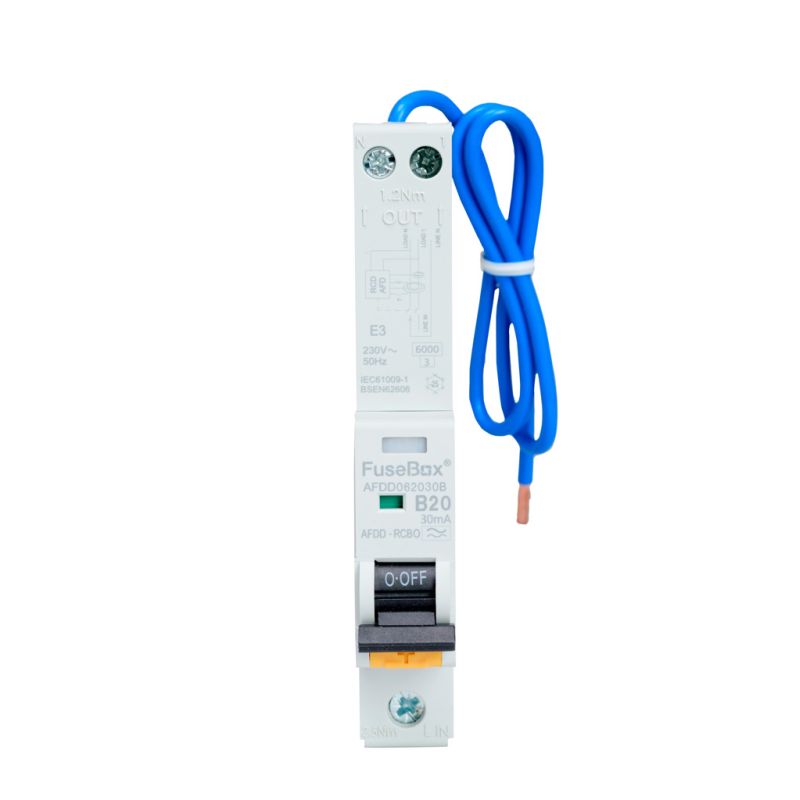

FUSEBOX AFDD 20A 30MA 2P AFDD062030B

The FuseBox AFDD 20A 30mA 2P (AFDD062030B) is an arc fault detection device that combines arc fault detection with overcurrent and residual current protection for enhanced safety on single-phase circuits. It detects dangerous arcing faults and provides 30 mA additional protection, while double-pole switching isolates both live and neutral. Designed for use in FuseBox consumer units, it is suitable for domestic and light commercial applications where additional fire protection is required.

• Brand: FuseBox
• Model/code: AFDD062030B
• Function: AFDD with integrated overcurrent and residual current protection
• Rated current: 20A
• Residual operating current: 30mA
• Poles: 2P (double-pole switching)
• Trip characteristic: B curve
• Voltage: 230V AC, 50Hz (single-phase)
• Mounting: DIN-rail; for FuseBox consumer units
• Includes test button for routine safety checks
