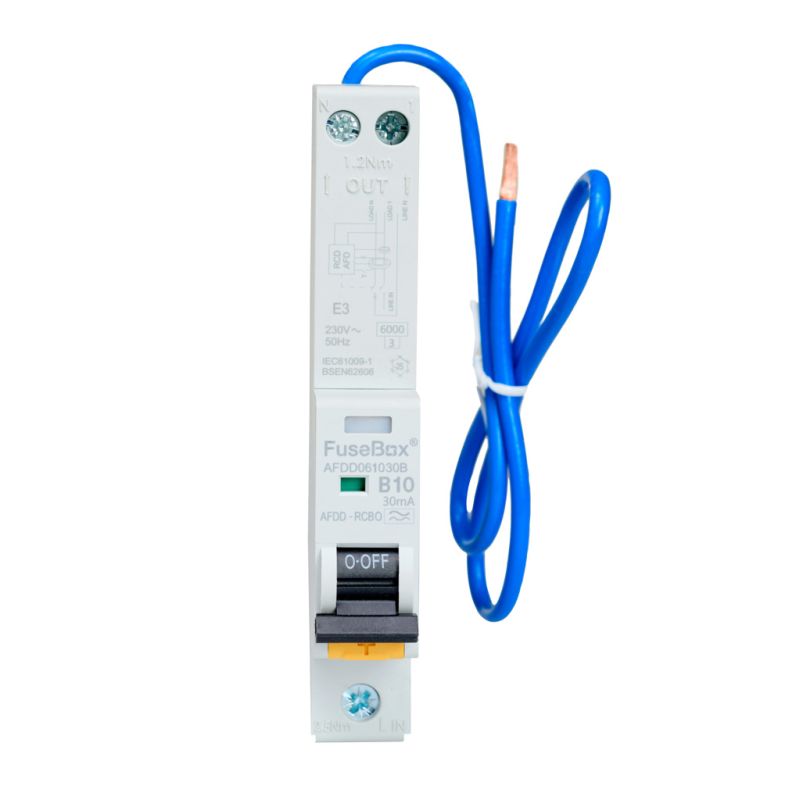

FUSEBOX AFDD 10A 30MA 2P AFDD061030B

The FuseBox AFDD 10A 30mA 2P (model AFDD061030B) is an Arc Fault Detection Device designed to improve circuit safety by detecting dangerous arc faults and disconnecting the supply. It combines arc-fault detection with overcurrent and earth-leakage protection in a single unit, making it suitable for single-phase domestic and light commercial installations. With a 10A rating, 30mA additional protection, and double-pole switching to isolate both live and neutral, it is intended for use in FuseBox consumer units and should be installed by a qualified electrician.

• Brand: FuseBox
• Model: AFDD061030B
• Type: AFDD with integrated overcurrent and earth-leakage protection
• Rated current: 10A
• Residual current sensitivity: 30mA
• Poles: 2P (double-pole switching)
• Supply: 230V AC single-phase
• Detects series and parallel arc faults to reduce fire risk
• Provides overload, short-circuit, and earth-leakage protection
• Test button for routine safety checks
• Fits FuseBox consumer units
• Professional installation required
