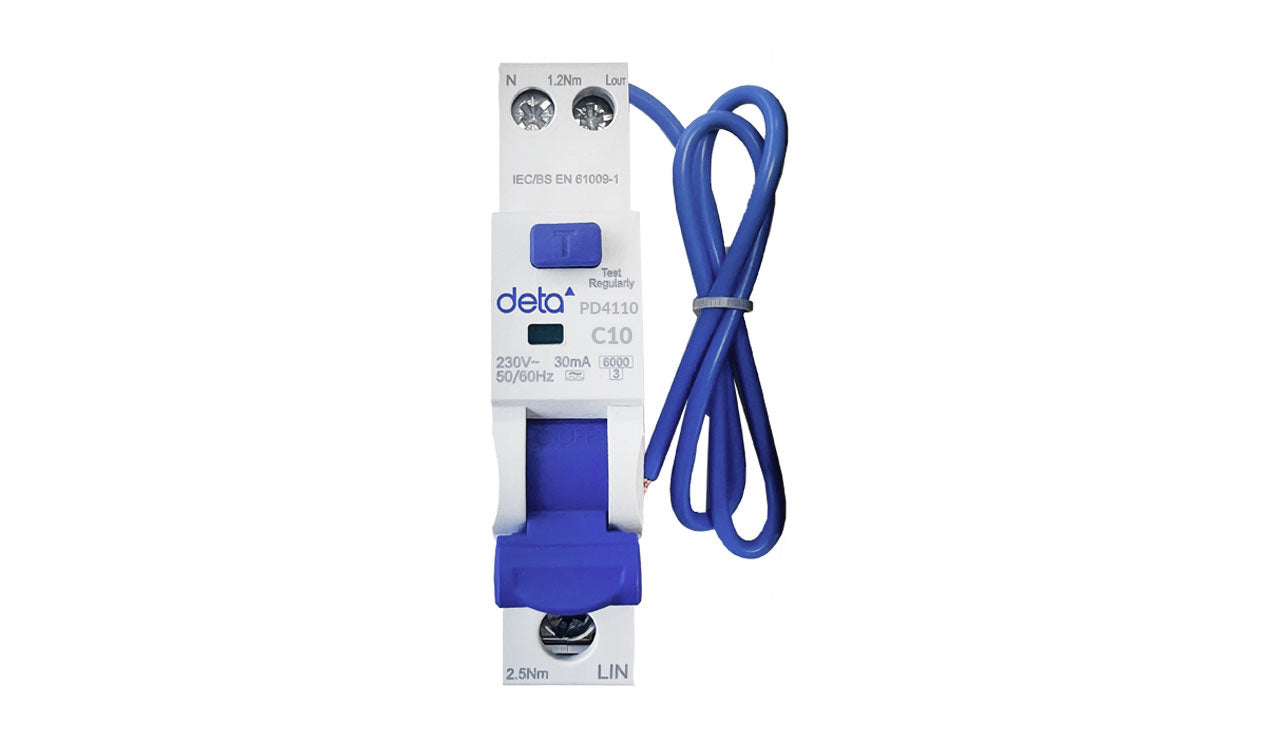

10A TYPE A CURVE C 1P+SW N RCBO PD4110

This 10A Type A Curve C RCBO from DETA Electrical Co Ltd (model PD4110) combines overcurrent and earth leakage protection in a single device. Designed for single-phase circuits, it provides reliable protection against overloads, short circuits, and residual current faults while offering switched neutral isolation for added safety.

The 1P+SW N configuration disconnects both live and neutral under fault or when switched off, supporting safe maintenance and compliance needs. Its Type A residual current sensitivity is suitable for detecting AC and pulsating DC fault currents, and the Curve C characteristic suits general purpose circuits with moderate inrush currents.

Suitable for use in consumer units and distribution boards, it features a front test button for routine verification and a clear on/off status indication.

• Brand: DETA Electrical Co Ltd
• Model: PD4110
• Function: RCBO (combined MCB and RCD)
• Rated current: 10A
• RCD type: Type A
• Trip characteristic: Curve C
• Poles: 1P + switched neutral (1P+SW N)
• Application: single-phase final circuits in residential and commercial installations
• Protection: overload, short-circuit, and earth leakage
• Features: switched neutral isolation; front test button and status indication
• Mounting: consumer unit/distribution board compatible
